Marlin Connectors

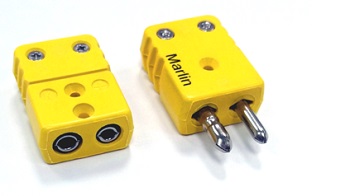

Full Size Thermocouple Connector

1065- / 1015-

• ANSI Color coded.
• 2 different entrance: Hex entrance for hex sheath adapters, oval wire entrance(1060/1010).
• Ambient temperatures to 400°F (205°C) continuous and 500°F (260°C) intermittent.
• For corrosive applications, gold or nickel plated prongs and inserts are available.

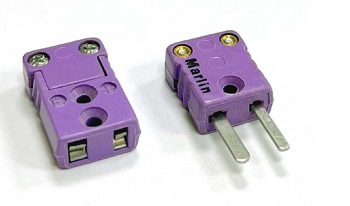

Miniature Thermocouple Connector

1260- / 1210-

• Accepts wire from 0.001″ diameter to 24 gauge.
• ANSI color coded,
• Ambient temperatures to 400°F (205°C) continuous and 500°F (260°C) intermittent.
• For corrosive applications, gold or nickel plated prongs and inserts are available.

High-Temperature Connector

• All High-Temperature Connectors of MARLIN are color coded red.
• Withstand ambient temperature 800°F (425°C) continuous and 1000°F (540°C) intermittent.
• Available for standard, mini size connector and stripanel products.
