INOR Transmitter MinIPAQ-L

MinIPAQ-L

Basic Programmable 2-wire Transmitter

MINIPAQ-L is a basic, programmable non-isolated, easy-to-use 2-wire transmitter. Configuration is made in seconds with the user friendly Windows software. No external power supply required for configuration.

MINIPAQ-L is programmable for RTD’s in 3- and 4-wire connection according to different standards as well as for 11 T/C types.

Useful error correction functions improve the accuracy.

• Accepts RTD in 3- and 4-wire connection and 11 T/C types
• Temperature linear output
• Sensor error and system (sensor/transmitter) error correction for
  highest total accuracy
• Configuration without external power
• Easy-to-use Windows configuration software
• NAMUR compliant
• Test output without breaking the loop
• USB communication
• Withstands vibrations up to 10 g

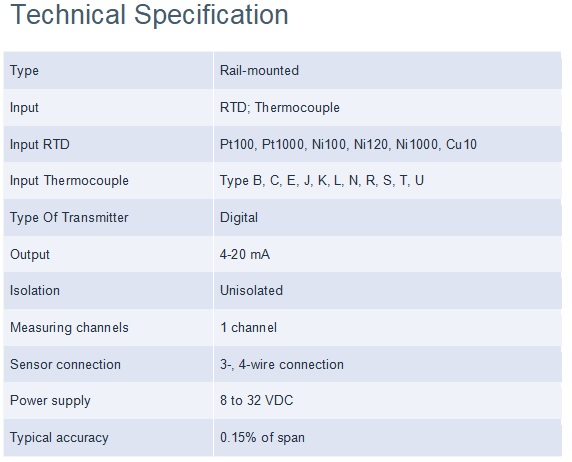

Please refer to our attached datasheet.

Contact us for more product information.
