SR361

SR361

Alarm Unit with Current and Voltage Input and Double Relay Outputs

SR361 is designed for monitoring current and voltage signals in the process industry.

Two output relays with individually adjustable trip functions are available.

LED’s in the front indicate alarm state and correct power supply.

• Current and voltage input

• Direct connection to 2-wire transmitters with built-in supply

• Monostable relays for safe tripping at power failure

• Two relay outputs with independently or simultaneosly switch functions

• SPDT relays with 6 A switch capacity

• High configuration flexibility with DIP switches

• Trip levels and hysteresis adjustable from the front

• Three front LED’s for trip indication and power supply monitoring

• 4 kV isolation between input, output and power supply

• Protective Separation acc. to EN 61010

• 24 V DC power supply

• DIN-rail mounting

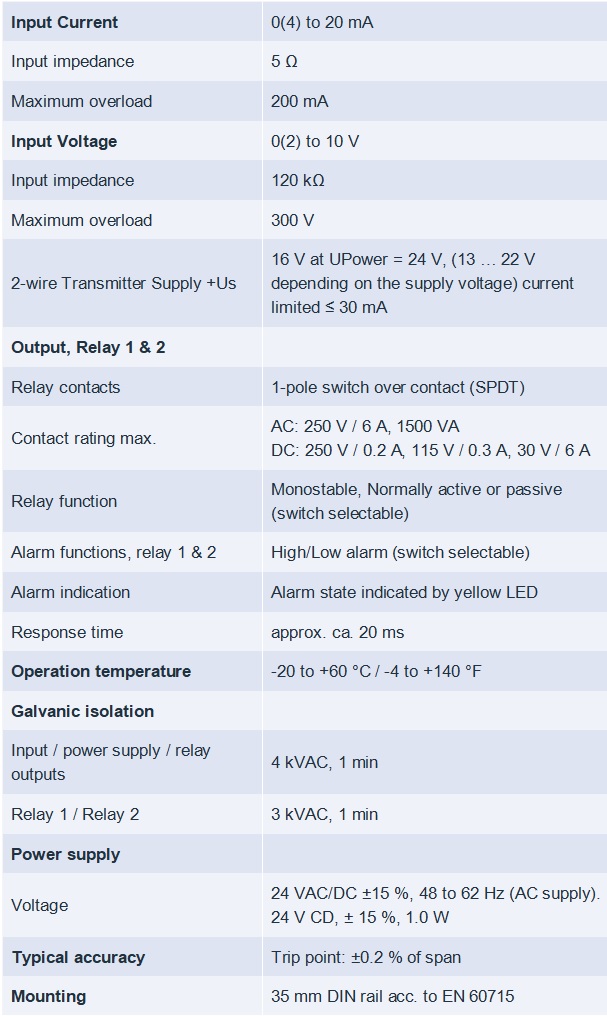

Technical Specification
