ICON-X

Ex-certified configuration kit for INOR transmitters
ICON-X is a complete kit for configuration of all INOR PC programmable transmitters. Communication with the connected transmitters is automatically established and configuration is done with the ConSoft software. ICON-X has built-in protection for Ex-certified transmitters. Configuration software ConSoft and installation guide can be downloaded from the download center.
Cables for connecting all transmitters
ICON-X includes all the cables you need to connect to all INOR PC programmable transmitters*.
Protection against supply of energy in an explosive atmosphere

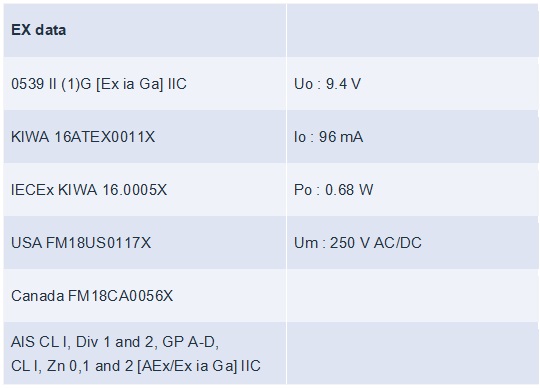

The ICON-X kit has built-in protection for the transmitter to ensure that no energy is supplied that could lead to an increased risk of explosion. ICON-X is Ex-certified, which allows the transmitter to be configured in a safe area with the temperature sensor still installed in an explosive atmosphere.
Optimised for work on the field
The configuration kit is portable and easy to use in the field. The new case made of hard plastic is designed to cope with tough handling.

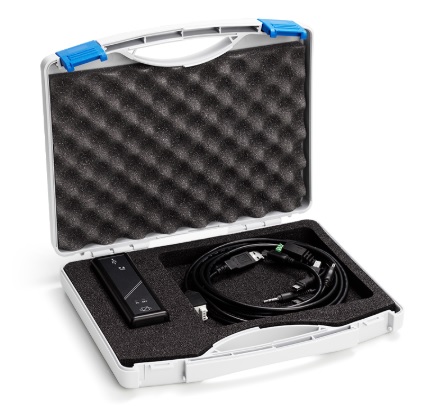

The configuration kit consists of:
• USB interface
• Cables (Between transmitter, USB interface and PC)
• Hard plastic case
* To configure OEM202 variants or Compact sensors there is a need for a special cable and adapters, not included in the standard kit, and needs to be ordered separately.

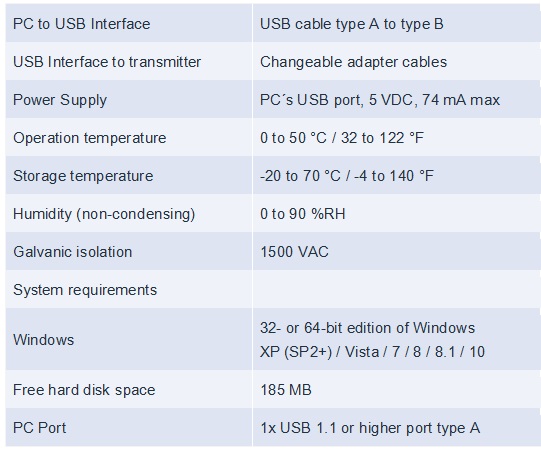

Technical Specification


Download Product Datasheet
|
