Adapter mA
Adapter designed to enable connections of mA signals to the IPAQ R330.
Adapter (a shunt resistor) that converts mA signals to mV signals, designed to be mounted on the input connector of the 2-wire transmitter IPAQ R330.
The transmitter will then work as an active isolation transmitter for mA input signals with a 4-20 mA output in a 2-wire connection. It is suitable for direct connection to the input modules of a control system. Thanks to the programmable input range and the low input impedance, it meets almost any need for current signal isolation and load amplification.
Configure via the INOR Connect app or ConSoft.

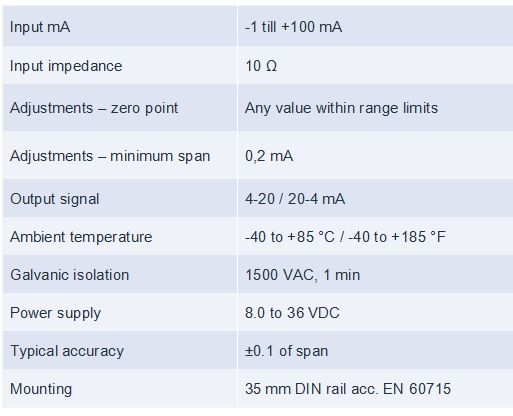

Technical Specification

Download Product Datasheet
|
