INOR代理-INOR 溫度感測器-TRA-C40
產品名稱:

TRA-C40



TRA-C40

Compact sensor for plugg-in

For measuring the temperature of gases, liquids, vapour and solids from -30 °C to +350 °C. Especially suited for industrial applications with limited space.

The compact sensor is made of stainless steel 1.4404 / 316L and is connected to the process by plugg-in. The sensor elemtent is a Pt100 RTD Thin film according to DIN EN 60751 and the electrical connection is made via a M12 connector.

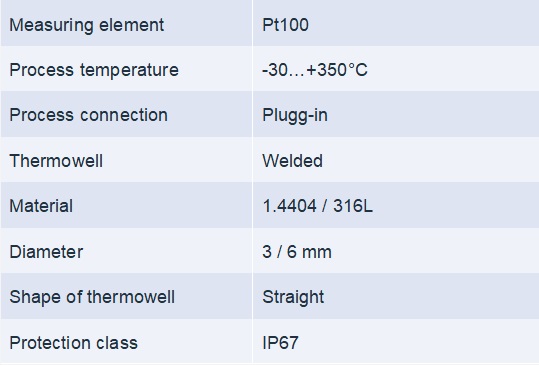

Technical Specification



Download Product Datasheet

Contact us for more information
檔案下載:詳細規格
