TRA-C20

TRA-C20

Compact sensor for screw-in

For measuring the temperature of gases, liquids, vapour and solids from -50 °C to +200 °C. Especially suited for industrial applications with limited space.

The compact sensor is made of stainless steel 1.4404 / 316L and is connected to the process by a G1/2 thread. The sensor elemtent is a Pt100 RTD Thin film according to DIN EN 60751 and the electrical connection is made via a Valve EN 175301-803 connector.

The sensor is available with a built-in transmitter.

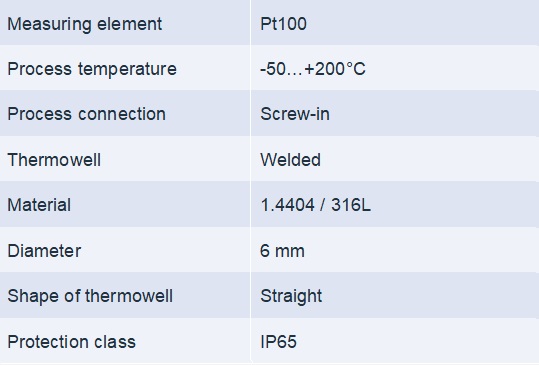

Technical Specification

Download Product Datasheet
