TRA-C10

TRA-C10

Hygienic compact sensor with flange DN25/38 ISO 2852 clamp connection

For measuring the temperature of gases, liquids and vapour from -50 °C to +200 °C.Especially suited for industrial applications with hygienic requirements and limited space.

The compact sensor is made of stainless steel 1.4404 / 316L and has a surface fineness of Ra 0.8 for the wetted parts. It is connected to the process by using a ISO 2852 Clamp DN25/38. The sensor elemtent is a Pt100 RTD Thin film according to DIN EN 60751. The compact sensor electrical connection is made via a M12 connector.

The sensor is available with a built-in transmitter.

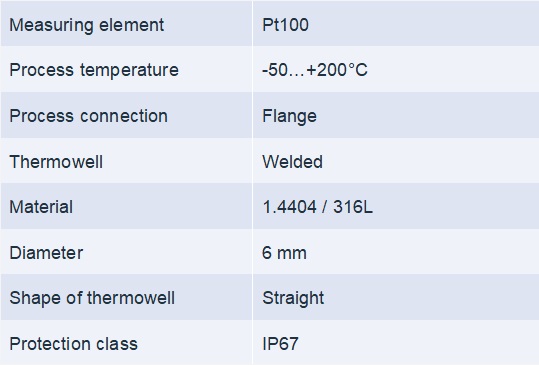

Technical Specification

Download Product Datasheet
