MinIPAQ R230

MinIPAQ R230

Universal 2-wire transmitter with wireless communication

MinIPAQ R230 is a universal, unisolated, 2-wire rail-mounted transmitter for temperature measurements and other measurement applications. It’s robust design and high quality provide good performance and accuracy even under harsh conditions.

The transmitter accepts inputs from several types of resistance thermometers (RTDs), thermocouple sensors (TCs), and linear resistance and mV signals. Configuration of the transmitter is easily done with the INOR Connect smartphone app, either wirelessly via NFC or via a connected Bluetooth® modem. Configuration can also be done via a PC with the Windows programme ConSoft.

• Input for resistance thermometers (RTD) and resistance in 2-, 3- and 4-wire connection
• Input for thermocouple (TC) and mV signals
• Fits on 35 mm DIN rail
• Configuration via PC, NFC or Bluetooth® without external power supply
• Sensor error correction and system error correction (sensor+transmitter) for highest overall accuracy
• Runtime counter – hour counter for elapsed operating time
• Robust design tested for 5 g vibration
• High security – password protection for changes
• Possible to configure and monitor the transmitter remotely via a connected Bluetooth® modem

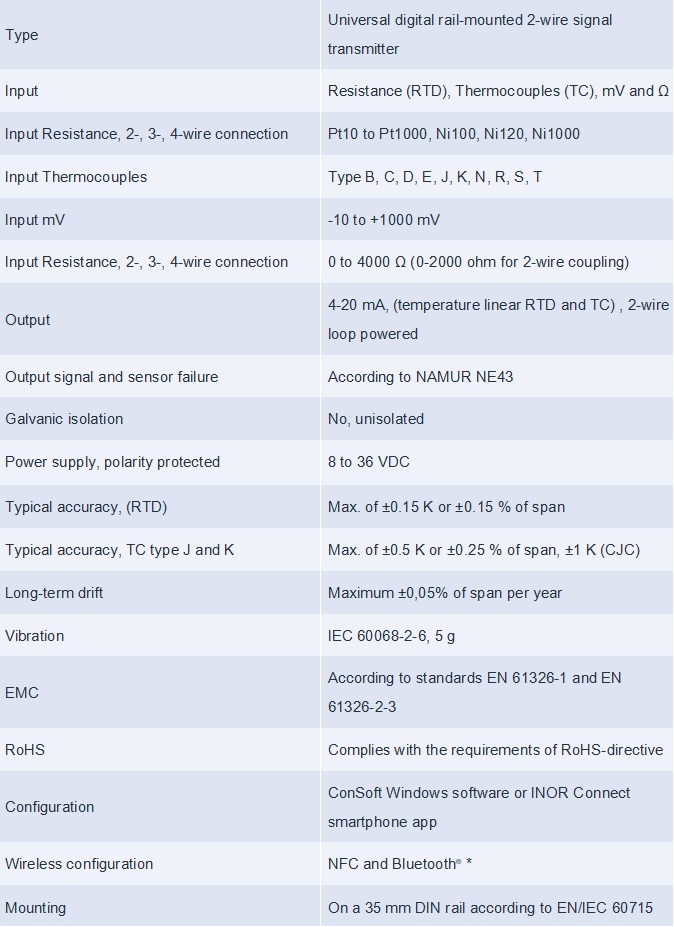

Technical Specification
